Solar svart justerbar midtklemme

Solar Black Adjustable Mid Clamp is specialized components for securing photovoltaic (PV) panels to mounting rails. Solar Module Aluminium Mid Clamp prioritize corrosion resistance, structural durability, and adaptability to diverse installation conditions.The T-shaped design allows for easy alignment of adjacent solar panels and ensures a firm and secure fit.

Solar Mounting T-Shaped Mid Clamp is designed for securely fixing solar panels and ensures maximum stability and easy installation. It is made from a durable, weather-resistant aluminium alloy and offers excellent corrosion resistance, making it suitable for both residential and commercial solar systems.

Feature:

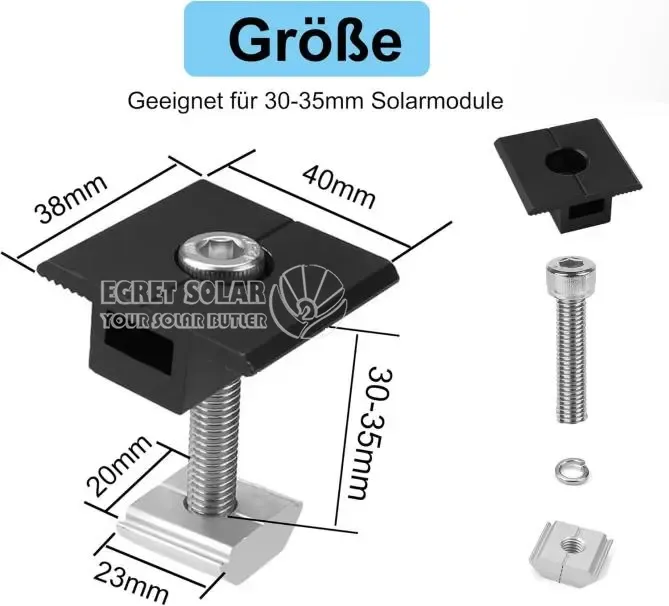

Suitable for 30 mm 35 mm thick solar panels.

Material: aluminium alloy AL6005-T5 and stainless steel screws SUS304.

Product specification: suitable for 30-35 mm solar panel edge press.

The thickness of the aluminium alloy is 4 mm, the width is 40 mm.

Suitable for most solar panel installations on the motorhome, home and boat.

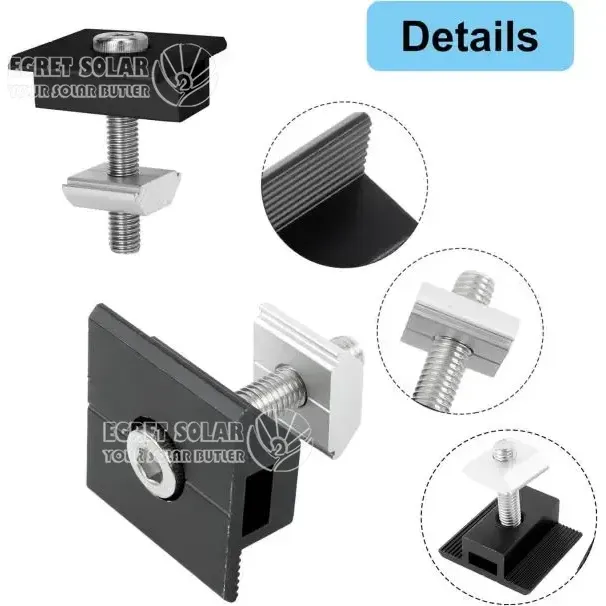

Details:

Material: aluminium alloy + electroplating process (oxidation resistance)

Colour: black.

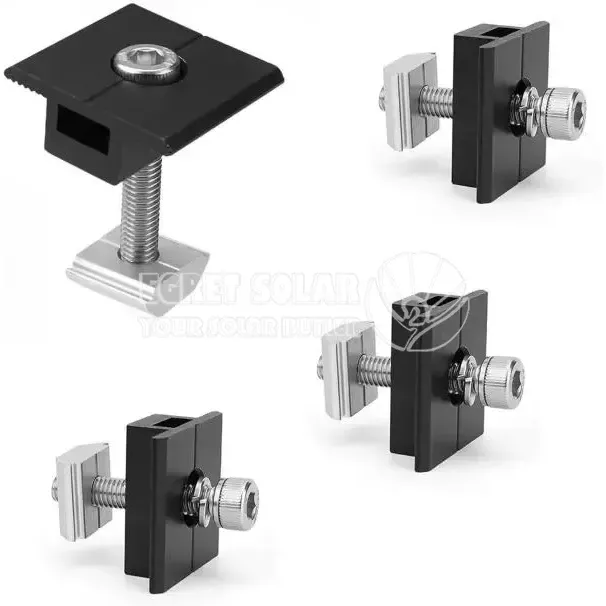

Style: T-shaped bracket

Size: can be used for solar panel 30 mm 35 mm.

Advantage：

Compatibility: Mid Clamp for 30-35 mm Framed PV Panels with standard dimensions is suitable for 30-35mm framed solar panel thickness

High Quality Material: Mid Clamp for 30-35 mm Panels are made of aluminum alloy, which is characterized by corrosion resistance and durability. They are constructed to withstand harsh weather conditions and have a long service life.

EASY INSTALLATION: T-shaped design allows for quick and effortless alignment of solar panels, shortens installation time and ensures a firm, stable fit

INCREASED STABILITY: Provides extra strength and support for the solar panels, prevents slipping or damage from wind and environmental influences, and keeps your solar system securely in place

Aluminum Alloy: Black Adjustable Mid Clamp Solar use lightweight, corrosion-resistant aluminum (e.g., AL 6005-T5), often anodized in black for enhanced weather protection .

Complementary Components: Stainless steel screws or EPDM rubber inserts ensure weather sealing and prevent panel abrasion .

Surface Treatment: Black anodizing improves UV resistance and aesthetic integration with PV panels .

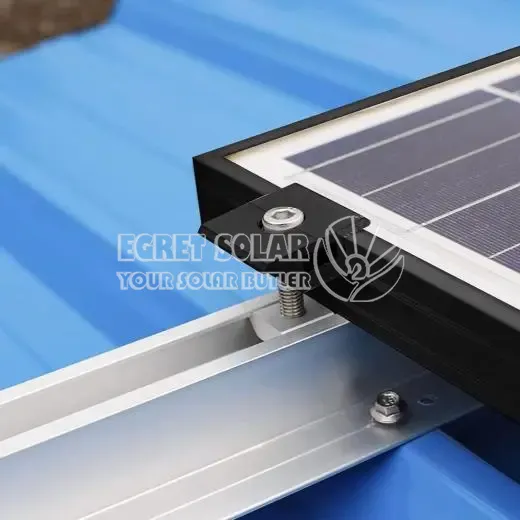

Solar Black Adjustable Mid Clamp must be combined with the rail. Make sure the clips are installed in the correct position and alignment by connecting the solar panels and attaching to the rail.

FAQ

1. What are these Adjustable Mid Clamp Solar Panel used for?

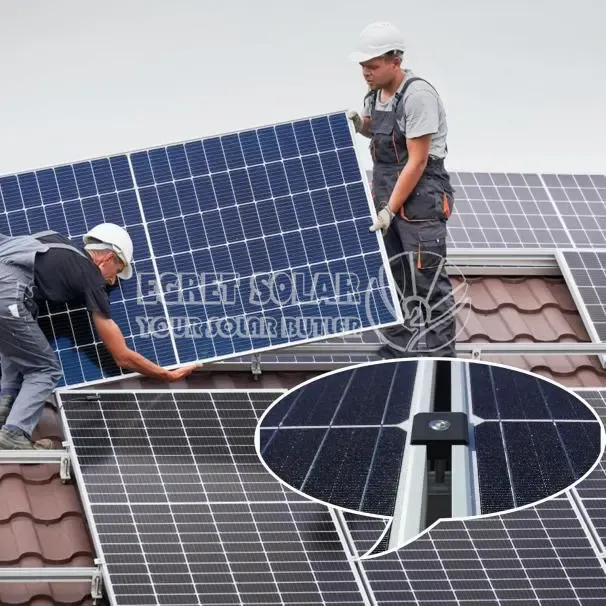

To secure solar panels to mounting rails at intermediate points (not edges). They prevent lateral movement and distribute mechanical loads (wind/snow).

2. How much weight can they support?

Wind: Up to 60 m/s (216 km/h).

Snow: 1.4 kN/m² (140 kg/m²).

Always verify against your panel’s load rating (e.g., Trinasolar DE09: max 2,400 Pa front pressure).

3. Installation torque settings?

Tighten bolts to 16–20 Nm (140–180 lbf·in).

Critical: Avoid over-tightening to prevent frame deformation!

4. Corrosion resistance?

Anodized aluminum body (e.g., AL 6005-T5).

A4-grade stainless steel bolts.

Rated for 25+ years in standard environments (coastal sites need enhanced protection).

5. Do they work on tilted roofs?

Yes, but ensure:

Rails are parallel to the roof slope.

Clamps are perpendicular to panels.

No shadowing on PV cells.

6. Warranty coverage?

We offer 12 years warranty.
